Drone Inspection Report: Commercial Warehouse Roof

Project Overview:

• Subject: Large commercial warehouse roof

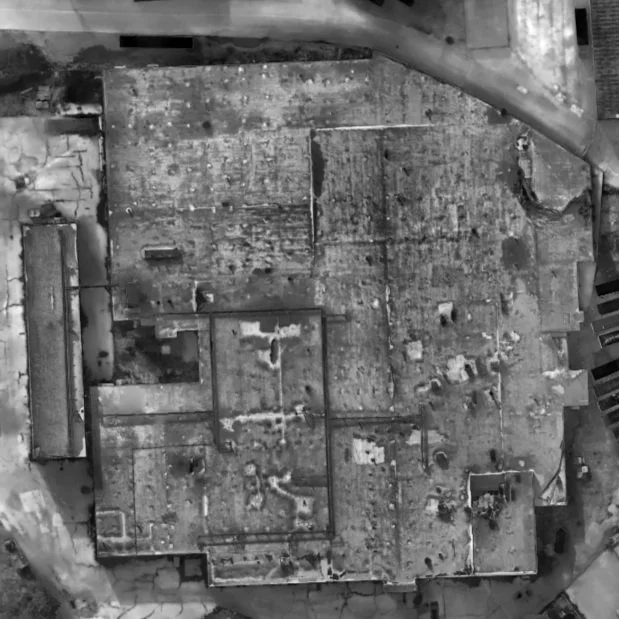

• Imagery Type: Thermal Infrared (Grayscale) & Visual (RGB) Orthomosaic

• Date of Imagery: **/**/****

• Location: ******** Pennsylvania, United States

Summary:

The combined thermal and visual imagery of the warehouse roof indicates a severely degraded and structurally compromised roofing system. Widespread thermal anomalies, including numerous hot spots (suggesting moisture intrusion and energy exfiltration) and significant cold spots (indicating structural breaches, missing insulation, and open voids), are corroborated by extensive visible damage. Observable features such as large holes, pervasive vegetation growth, significant debris accumulation, deteriorated patching, and what appears to be missing mechanical equipment underscore the urgent need for comprehensive intervention. The roof is in a critical state, necessitating immediate professional assessment and extensive repairs or full replacement.

Methodology:

Both grayscale thermal and high-resolution RGB orthomosaic images were analyzed. Thermal patterns (lighter tones = warmer, darker tones = cooler) were cross-referenced with visible features and conditions on the RGB image to identify, characterize, and contextualize anomalies.

Detailed Findings and Observations:

1. Major Structural Breaches / Holes:


• Observation (RGB): Multiple large, irregular-shaped holes are clearly visible across various sections of the roof. Notable examples include a very large, roughly oval-shaped hole in the central-left section, and several other smaller but significant openings.

• Correlation (Thermal): These visible holes correspond directly to prominent cold spots (very dark/black areas) on the thermal image.

• Implication: This is a direct indication of catastrophic roof failure, allowing direct heat loss from the building interior and immediate water ingress during precipitation. These are critical energy efficiency and structural integrity issues.

2. Extensive Vegetation Growth:


• Observation (RGB): Scattered areas of plant growth (moss, weeds, small shrubs) are prevalent across the entire roof surface, particularly concentrated in areas where debris or ponding might occur.

• Correlation (Thermal): Areas with vegetation often present as cooler or highly varied thermal signatures. Vegetation can cool the surface through evapotranspiration or provide shade, masking underlying thermal anomalies or creating new ones. In some cases, vegetation can also trap moisture, contributing to warmer thermal signatures underneath.

• Implication: Vegetation indicates prolonged moisture presence, accumulation of organic debris, and significantly accelerates roof degradation by breaking down the membrane and retaining moisture.

3. Widespread Hot Spots (Probable Moisture Intrusion):


• Observation (RGB): Numerous irregular-shaped areas of visible staining, discoloration, and deteriorated patching are widespread. Some areas appear to have minor ponding.

• Correlation (Thermal): These visual indicators often align perfectly with prominent hot spots (bright white/light gray areas) on the thermal image. These hot spots are consistent with trapped moisture within the roof's insulation layers, which absorbs solar radiation and radiates heat longer than dry areas.

• Implication: This is strong evidence of extensive moisture intrusion across multiple sections of the roof, leading to compromised insulation, potential mold growth, and accelerated roof decay.

4. Deteriorated Roof Membrane and Patching:


• Observation (RGB): The entire roof membrane appears aged, weathered, and heavily patched. Many patches show signs of failure, lifting, or degradation.

• Correlation (Thermal): The areas around and within these patches often exhibit localized thermal variations, either hotter or colder, indicating that the repairs themselves may be failing or contributing to new issues (e.g., poor insulation within the patch, new points of water entry).

• Implication: The cumulative effect of numerous old and failing patches creates a highly permeable surface, allowing for consistent water infiltration and thermal inefficiency.

5. Accumulated Debris and Material Degradation:


• Observation (RGB): Piles of debris, loose materials, and general grime are visible across the roof surface, especially in depressions or near edges.

• Correlation (Thermal): Debris can trap moisture or create localized thermal mass variations, appearing as varied thermal signatures (either hot or cold) depending on the material and moisture content.

• Implication: Debris can impede drainage, lead to ponding, and provide a substrate for vegetation growth, all of which contribute to accelerated roof deterioration.

6. Missing Mechanical Equipment / Open Voids:


• Observation (RGB): Several areas appear to be former locations of mechanical units, now empty or open, particularly on the lower right section of the roof.

• Correlation (Thermal): These open areas correspond to distinct cold spots (very dark areas).

• Implication: Unsealed penetrations or missing equipment create direct pathways for significant heat loss from the building interior and immediate points of water ingress, contributing to the overall thermal inefficiency and structural risk.

7. Roof Sections and Drainage:


• Observation (RGB): The roof appears to be comprised of multiple sections with varying elevations and drainage patterns. Some areas show signs of ponding water or historical water flow.

• Correlation (Thermal): Changes in elevation and drainage paths can influence thermal patterns, often correlating with areas of moisture accumulation (hot spots) or structural elements (varied temperatures).

• Implication: The complex geometry and apparent drainage issues contribute to water retention, exacerbating thermal anomalies and accelerating material degradation.

Overall Assessment:

This roof is in a critical state of disrepair. The combined thermal and visual evidence points to:

• Extensive moisture saturation: Confirmed by widespread hot spots and visible staining/deterioration.

• Significant insulation degradation/loss: Evident from numerous cold spots and areas of energy exfiltration.

• Major roofing system structural integrity issues: Clearly indicated by large holes and missing equipment.

• Chronic lack of maintenance: Evidenced by rampant vegetation growth and debris accumulation.

Recommendations:

1. Urgent Professional Roofing Assessment: An immediate, on-site assessment by a qualified roofing contractor specializing in large commercial/industrial roofs is paramount. This should include detailed physical inspections, core samples in anomalous areas to confirm moisture, and structural integrity checks.

2. Prioritization of Critical Repairs/Replacement: Based on the assessment, prioritize addressing the largest holes, areas of severe moisture saturation, and points of open penetration. Given the widespread issues, a full roof replacement may be the most cost-effective long-term solution.

3. Moisture Mitigation: Address all sources of water ingress and improve drainage to prevent further saturation.

4. Debris Removal and Vegetation Control: Clear all accumulated debris and remove all vegetation to prevent further damage and improve roof longevity.

5. Regular Maintenance Plan: Implement a comprehensive preventative maintenance program, including routine inspections, debris removal, and minor repairs, to extend the life of any repaired or new roof system.

This analysis underscores the severe condition of the roof and the necessity for immediate and decisive action to prevent further damage to the building's structure and contents, and to improve energy efficiency.
